【LSPRNTR-100】LinkSprinter 100网络测试仪
- 产品介绍
【LSPRNTR-100】LinkSprinter 100网络测试仪火热上市，深圳市福欣智能网络科技有限公司专业销售LinkSprinter 100，LinkSprinter 200网络测试仪，产品咨询热线：0755-82816978，82816976。
【LSPRNTR-100】LinkSprinter 100网络测试仪很小巧，可以放在你的口袋中，而你可以通过智能手机控制它的工作状态，并且将测试结果上传到云端。
Five essential network tests in the palm of your hand. Simply connect your LinkSprinter to a network and the test sequence begins automatically.
Internet互联网服务测试: Can I reach my critical cloud or internal service? Verify DNS lookup and application port connectivity.
Gateway网关服务测试: Can I get to the edge of my premise? Verifying the router/gateway address and reachability.
DHCP服务测试: Is the DHCP server running and responsive? Request an IP address, or use your own static IP.
Link连接速率测试: Does this cable go anywhere? Quickly verify links including gigabit Ethernet connectivity.
POE供电测试: Can I use a phone, camera or AP here? LinkSprinter even runs without batteries on Power over Ethernet.
The LinkSprinter 云服务简介：
With the Cloud Service:
- Automatically capture every test result
- Email test results
- Annotate test results
- Manage, sort and analyze results
- Filter results by time, user, network, errors
- Generate custom reports
【LSPRNTR-100】LinkSprinter 100网络测试仪技术指标：
| Specifications | |
|---|---|
General |
|
| Dimensions | 4.36” x 1.6” x 1.28” (11.07 cm x 4.06 cm x 3.25 cm) |
| Weight with batteries | Model 100: 0.250 lb (0.113 kg) Model 200: 0.255 lb (0.116k kg) |
| Battery | 2 AA Alkaline |
Environmental |
|
| Operating Temperature and Relative Humidity | 32°F to 122°F (0°C to 50°C ), Relative Humidity 5% to 90% Non-condensing |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Shock and Vibration | Random 2g, 5Hz – 500 Hz (class 2), 1 m drop |
| Safety | CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition), IEC61010-1:2010, Pollution degree 2 |
| Altitude | Operating: 13,123 ft. (4,000 m) Storage: 39,370 ft. (12,000 m) |
| EMC | EN 61326-1:2006 |
| Certifications and Compliance | Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association Conforms to relevant FCC standards |
Wireless (LSPRNTR-100不支持，LSPRNTR-200支持) |
|
| Specification Compliance | IEEE 802.11b/g |
| Frequency Channels | 802.11 Channels 1 thru 11, default is 11 |
| Operating Frequency | 2.412 ~ 2.484 GHz, ISM Band |
| Regulatory Domain | EN 301 489-1/17 |
| Browser | Internet Explorer 9.0, Firefox 3.6, Chrome 5.0, Safari 5.1 (minimum revision) |
【LSPRNTR-100】LinkSprinter 100网络测试仪常见问题：
What happens when I receive my LinkSprinter?
It only takes moments to begin testing with your LinkSprinter. Follow the Getting Started Guide to claim the tester and capture your test results to the cloud.
What are the differences between the model 100 and 200?

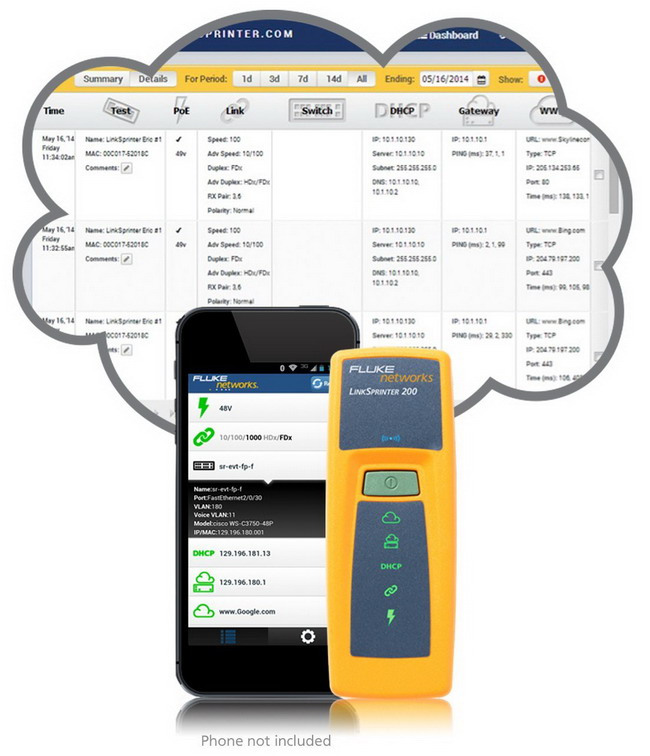

Both models provide PoE, link, DHCP, gateway and service testing via color graded LEDs as well as LinkSprinter Cloud Service. The model 200 includes a built in Wi-Fi access point allowing your phone or tablets browser to display detailed test results making network troubleshooting more effective.
How does my phone or tablet work with the LinkSprinter?
Tap the power button to turn on the LinkSprinter built in Wi-Fi AP then associate your mobile device to the LinkSprinter SSID and open your browser to 172.16.9.9. The browser user interface provides test details.
What if I want to outfit my entire fleet?
Managing a fleet of technicians has never been easier. Testers can be personally named and all organizational results are collected by the LinkSprinter Cloud Service for email or report generation.
